Top and Side Profile

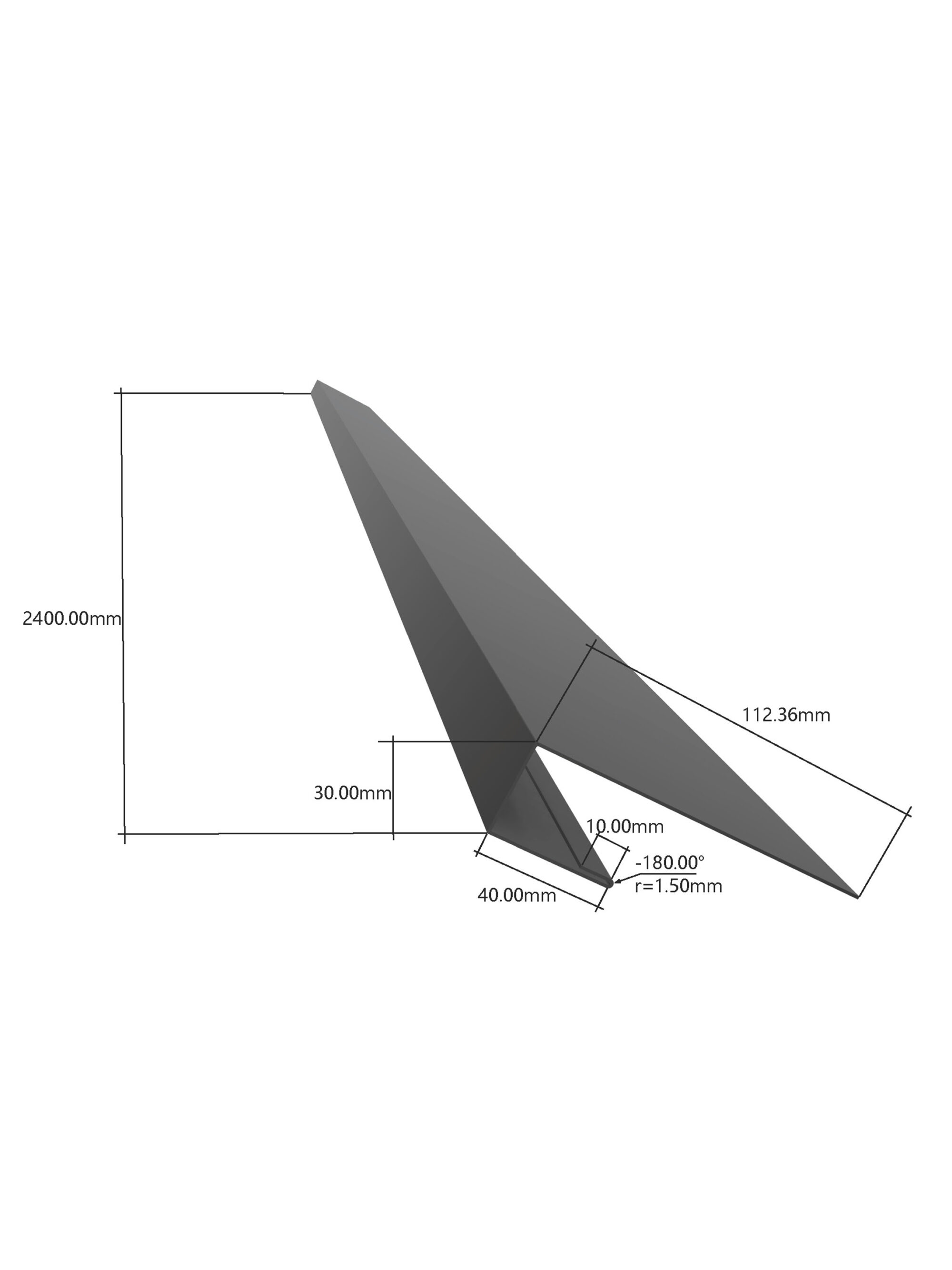

A 1 mm aluminium profile for finishing top and side edges in installations using FibroTech Alu or Alu ThermoWood panels. The profile is 2400 mm long and powder-coated in a matt black finish that complements FibroTech’s Alu and Alu ThermoWood panel ranges. It can be cut to the required length using suitable tools for aluminium or metal.

Typical application

Used to finish exposed panel edges and cover cut surfaces, creating a uniform appearance.

Examples

For the left- or right-hand edge of a façade.

Around openings, such as windows or doors.

Installation instructions

1. Measure the area to be finished and cut the profile to the required length.
2. Position the cover profile along the top edge or other exposed panel edges.
3. Secure the profile to the underlying material using FibroTech Alu/ThermoWood screws.
